Description

NOW INCLUDES THE FLASH DRIVE BLUETOOTH MODULE

The Flash Drive Motors JIB makes all of the 12V interconnections between components to simplify wiring your EV Conversion.

This little box will save you hours of soldering, crimping, and planning on your EV conversion.

It also includes the Flash Drive Sentinel to monitor and keep your 12V battery charged when idle with protection against HV battery over discharge.

All relays and fuses are populated to make the 12V side of your EV Conversion easy.

An Aux CAN Bus plug is provide to add additional CAN driven components in the system such as a display or gauges.

The JIB wires the following components:

• ElCon/TC/Stealth Charger (or combo unit)  – Almost any CAN controlled charger
• ElCon/TC/Stealth DC-DC Converter (or combo unit)
• Orion BMS 2 and soon the Vero BMS
• Hyper 9 IS/Hyper 9 IS HV
• J1772 or Tesla (NACS) Charging Receptacle (Control and Pilot)
• Chassis Harness (Ground/12V/12V Key/Pump/Fan/Reverse)
• Auxiliary CAN Bus

All wires are color-coded to match the connected components to take the guess work out of wiring.

Controls the following functions:

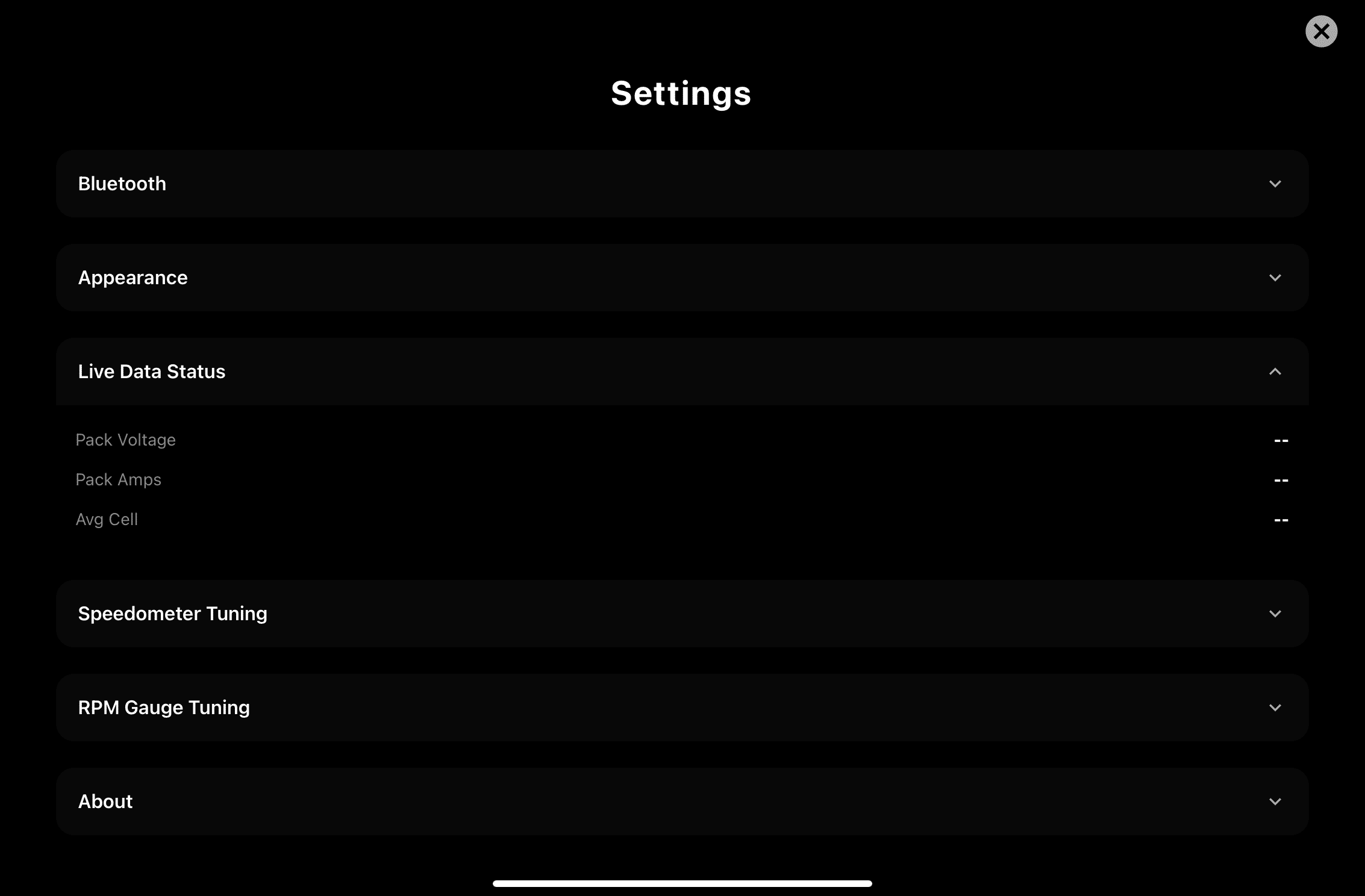

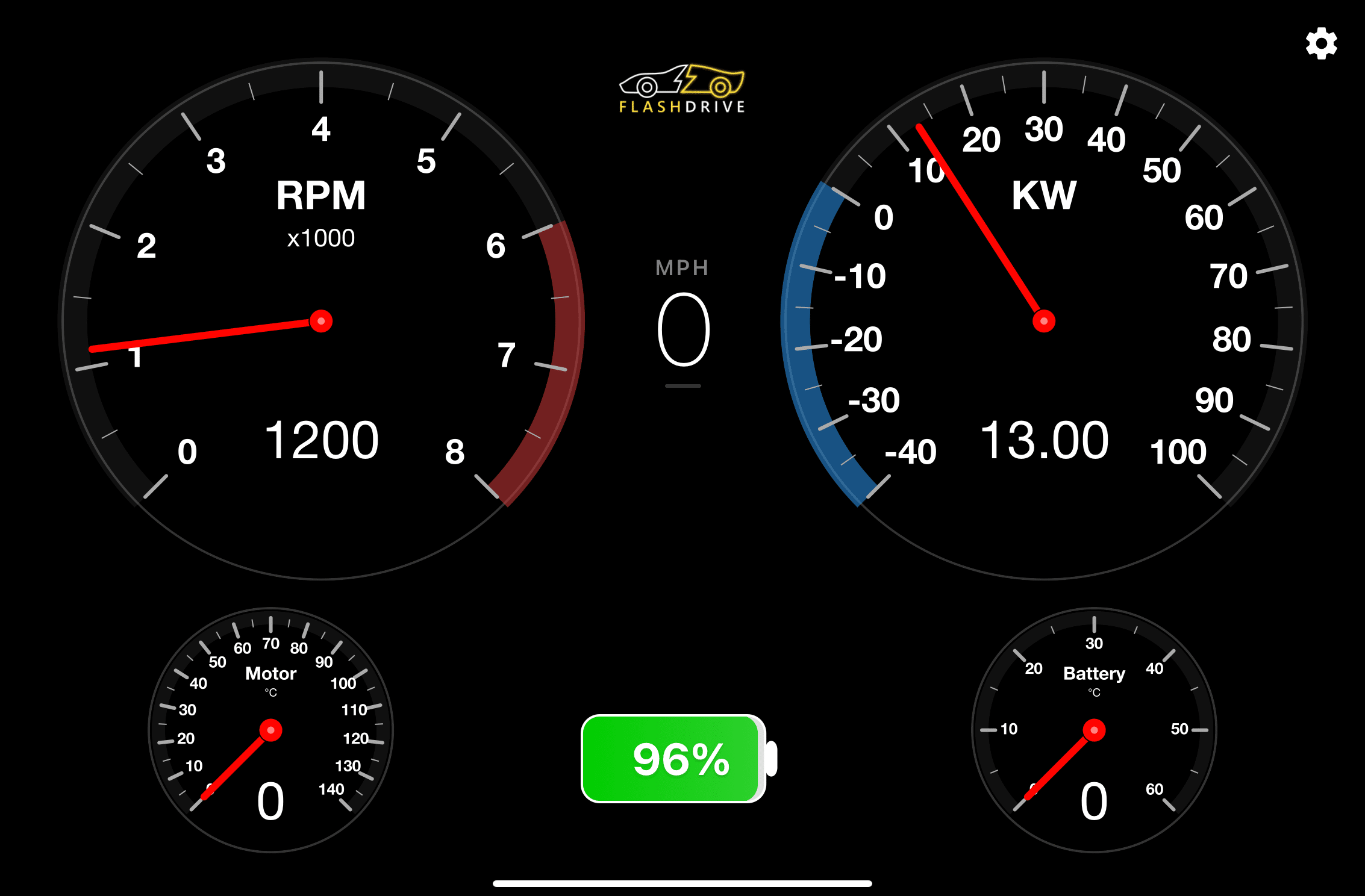

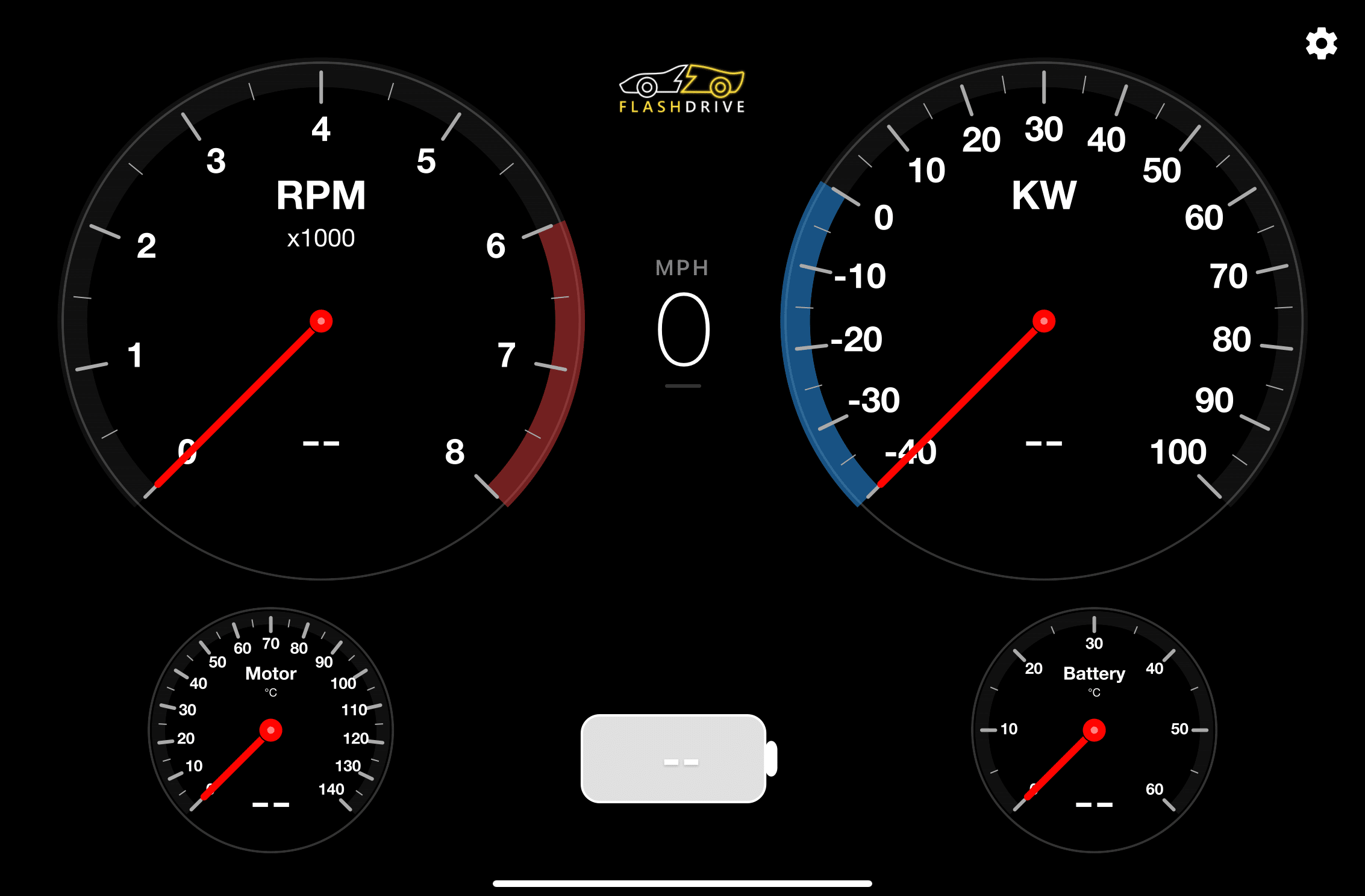

• CAN to Bluetooth module for the Flash Drive display app on IOS and Android tablets
• Fan (Orion BMS triggered)
• Water pump (Key on and charging)
• Charge Enable (Orion BMS triggered)
• Discharge Enable (Orion BMS triggered)
• DC-DC Converter Enable (Key on, charging, and when 12V battery is low) with over discharge protection built in
• Forward/Reverse – optional input to control direction of the motor
• CAN Termination (optional) – optional jumper to terminate the CAN bus
